SUS304 Aseptic Carton Filling Machine with Triple Sterility Guarantee and Servo Follow-up Correction System for 1000-3000CPH Packing Capacity

  • SUS304 Aseptic Carton Filling Machine with Triple Sterility Guarantee and Servo Follow-up Correction System for 1000-3000CPH Packing Capacity
  • SUS304 Aseptic Carton Filling Machine with Triple Sterility Guarantee and Servo Follow-up Correction System for 1000-3000CPH Packing Capacity
  • SUS304 Aseptic Carton Filling Machine with Triple Sterility Guarantee and Servo Follow-up Correction System for 1000-3000CPH Packing Capacity
  • SUS304 Aseptic Carton Filling Machine with Triple Sterility Guarantee and Servo Follow-up Correction System for 1000-3000CPH Packing Capacity
  • SUS304 Aseptic Carton Filling Machine with Triple Sterility Guarantee and Servo Follow-up Correction System for 1000-3000CPH Packing Capacity
  • SUS304 Aseptic Carton Filling Machine with Triple Sterility Guarantee and Servo Follow-up Correction System for 1000-3000CPH Packing Capacity
Merknaam CHIC
Certificering ISO CE
Model Number CHIC-3000BS
Minimum Order Quantity 1 Pcs
Packaging Details Laminated Paper Cartons
Delivery Time 35-40 Days
Payment Terms 40%TT Deposit And 60% TT Before Shipping
Supply Ability Milk, Juice, Wine, Water, Food And Degergent Sauce,

Contacteer me voor vrije steekproeven en coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Verpakkingscapaciteit 1000-3000 CPH Vullend Formaat 1000 ml Prisma, Vierkant of Basis
Machine SUS304 Stroomverbruik 23kw
Vulnauwkeurigheid 00,5-1% Voeding 380V/50HZ of op maat
Luchtverbruik 3m³/min, 0,8-1 MPa Machinegrootte 4830 mm × 2150 mm × 3780 mm
Markeren

Triple Sterility Guarantee Aseptic Carton Filling Machine

,

Servo Follow-up Correction System Brick Type Carton Filling Machine

,

1000-3000CPH Packing Capacity Gable Top Filling Machine
Laat een bericht achter
Productomschrijving
SUS304 Material Brick type Pack Juice and Milk Packaging Machine with 3m3/min Air Consumption
Product Overview

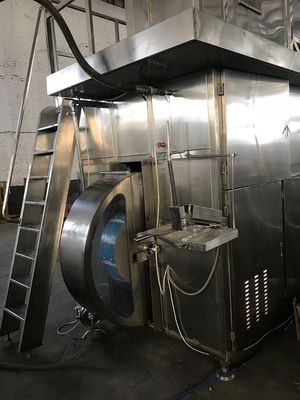

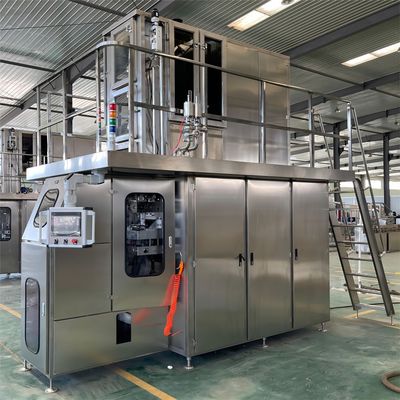

The CH series aseptic carton filling machine is designed for filling sterilized liquid food into sterilized packaging material under aseptic conditions. It seals and forms the package simultaneously to prolong product shelf life. This advanced machine incorporates "triple sterility guarantee" technology to ensure high-level performance, production stability, and automation.
SUS304 Aseptic Carton Filling Machine with Triple Sterility Guarantee and Servo Follow-up Correction System for 1000-3000CPH Packing Capacity 0
Key Features
  • Advanced fully automatic PLC control system for complete process automation
  • Multiple control systems including multi-point sensing alarm and servo follow-up correction
  • Safe and reliable sterile system with proven sterilization technology
  • User-friendly human-machine interface for intuitive operation
  • Premium international components for maximum reliability
  • Compatible with 6-layer composite materials (PE/paper/PE/aluminum foil/PE/PE)
Technical Specifications
Standard Capacity 1L Square type carton
Packaging Material 7-layer laminated composite paper (raw paper/aluminum foil/polyethylene)
Production Capacity 1000-3000 cartons per hour
Required Operators 2
Dimensions 4830mm * 2150mm * 3780mm
Weight 2000Kg
Power Consumption 20KW
Compressed Air Consumption 3m³/min at 0.8-1MPa
H₂O₂ Consumption 0.2L per shift at 35% concentration
Cooling Water Clean soft water
Applications

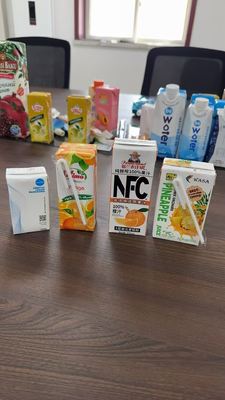

This machine is designed for filling various liquid beverages including pure milk, goat milk, soy milk, yogurt, fruit/vegetable juices, and plant protein drinks into paper-aluminum-plastic composite cartons. Available in multiple configurations:
  • 125ml
  • 200S (200ml slim type)
  • 200B (200ml standard type)
  • 250S (250ml slim type)
  • 250B (250ml standard type)
  • 200Z (200ml diamond carton with cap/straw)
  • 250D (250ml diamond carton with cap/straw)
  • 330D (330ml diamond carton with cap/straw)
  • 500D (500ml diamond carton with cap/straw)
  • 500S (500ml slim carton with cap/straw)
  • 1000S (1000ml slim type)
  • 1000D (1000ml diamond carton with cap)
Support & Services
  • Installation and setup guidance
  • Operator and maintenance training
  • Troubleshooting assistance
  • Scheduled maintenance services
  • Spare parts availability
  • Software updates and upgrades
  • Comprehensive technical documentation
Frequently Asked Questions
What is the brand name of the Aseptic Carton Filling Machine?
The brand name is CHIC.
What is the model number of the Aseptic Carton Filling Machine?
The model number is CHIC-3000BS.
Where is the Aseptic Carton Filling Machine manufactured?
The machine is manufactured in China.
What certifications does the Aseptic Carton Filling Machine have?
The machine is certified with ISO and CE.
What is the minimum order quantity for the Aseptic Carton Filling Machine?
The minimum order quantity is 1 piece.
