De foto-elektrische Automatische Doos die van de Sachet Kartonnerende Machine 1700mm vullen

  • Photoelectric Sachet Cartoning Machine Automatic Box Filling 1700mm
  • Photoelectric Sachet Cartoning Machine Automatic Box Filling 1700mm
  • Photoelectric Sachet Cartoning Machine Automatic Box Filling 1700mm
Plaats van herkomst China
Merknaam CHIC
Certificering CE ISO
Min. bestelaantal 1 stuk
Verpakking Details De verpakkingsbinnenkant is plastic films en de buitenkant is berokings houten geval. Ons houten gev
Levertijd 30 werkdagen
Betalingscondities L/C, T/T, Western Union
Levering vermogen 20 PCs /month

Contacteer me voor vrije steekproeven en coupons.

whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Naam De volledige Automatische van het het Weefsel In dozen doende Sachet van de Theezakjedoos Gezichts N Gedreven type Elektrisch
Voltage de Fase van 380V 50Hz 3 Capaciteit 50-60 kartons/min
Afmeting 2800*1350*1700 mm Kartongrootte L: 70200mm; W: 40160mm; H: 1570mm
Markeren

Foto-elektrische sachet kartonnerende machine

,

1700mm sachet kartonnerende machine

,

1700mm automatische doos het vullen machine
Laat een bericht achter
Productomschrijving

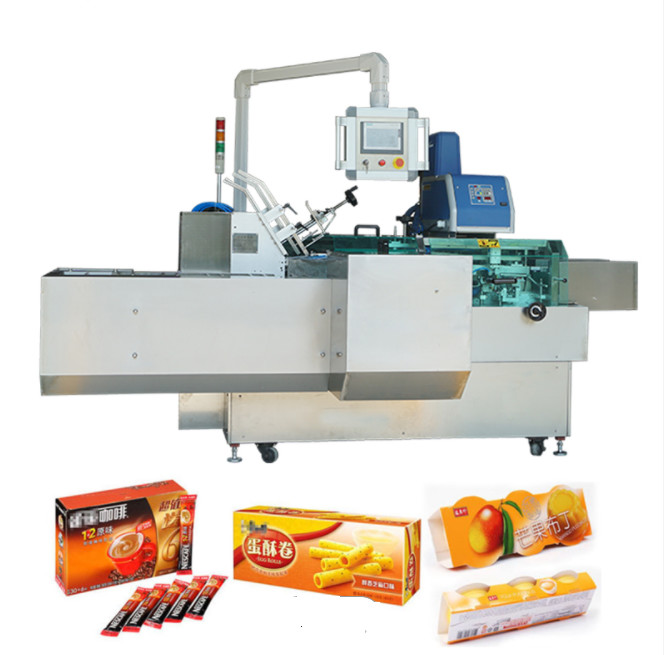

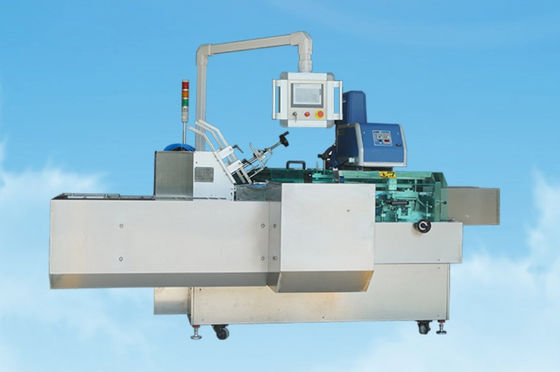

Full Automatic Tea Bag Box Facial Wet Tissue Boxing Sachet Cartoning Packaging Machine



Application:



Automatic Box Cartoning Machine is a hot sale product developed and manufactured by our company. It is applied to a variety of foods, toys, cosmetics, electronics and daily necessities. The working process is as follows: automatic box forming, feeding, folding, glue spraying and sealing. It saves a lot labour cost which equal of 8-20 workers.





Specifications :





Model No.
CHIC-ZHPJ-V3
Product Name
Automatic Box Cartoning Machine
Air Consumption
200-400L/min.
Power
5 kw
Voltage
380/220V 50Hz
Machine Weight
1000 – 1500 kgs
Overall Dimension
(L)2800mm x (W)1500mm x (H)1650mm
Box Packing Speed
40-60 boxes/min.
Box Material
250-350g/m2 or corrugated cardboard

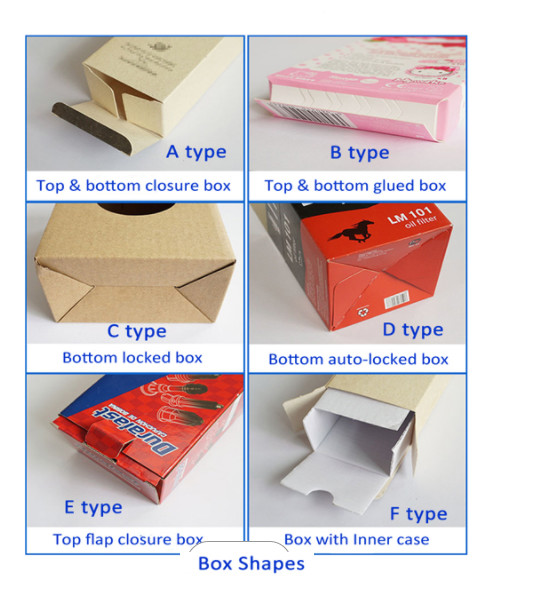

Box Size
L: 70-200mm; W: 40-160mm; H: 15-70mm
Can be customized according to your box shape and size

Feature:



1, Adopt PLC automatic control system, frequency conversion. The electrical components adopt international famous brands.
2, Photoelectric system monitors all parts moving. If there is malfunction during the running, the wrong place will be shown and the machine can stop automatically.
3, Reject automatically the box which is lack of stuff or specification.
4, If the stuff or specification lack, the paper box will stop feeding.
5, Performance is stable. The operation is easy and convenience.
6, The machine can feed and box continually, the machine can instead of 15-20 the workload of workers.



machine accessory list:



No. Name Brand Made in
1 The main body Stainless steel China
2 electric elements Schneider / OMRON french/japan
3 pneumatic AIRTAC Joint venture
4 Bearing Luoyang China
5 servo motor Panasonic JAPAN
6 PLC Siemens German
7 Touch screen Siemens German
8 Driver Starlight transmission China

Samples:

De foto-elektrische Automatische Doos die van de Sachet Kartonnerende Machine 1700mm vullen 0

De foto-elektrische Automatische Doos die van de Sachet Kartonnerende Machine 1700mm vullen 1

Pre-Sale Service:



We will according your product feature, weight of each bag, and shape of bag make a quotation for your. Then more details we need communication sunch as material and thickness of film, dimension of bag you already have it or need we design for you, Operate language,what kind of voltage at the local.



After-Sale Service:



Warranty: 1 Year excep wearing parts ( Cutter, Belt, Horizontal and vertical Heating Tube etc)Most of components are free-replacement (PLC,Servo controller,Servo motor,Touch screen,cylinder) . Machine delivery will with a tool box, there have some parts is free.



Operation training: 1:Machine is very easy operate, delivery with manual, offer lot of photo and video when machine in assembling or disassembling. 2: Welcome to our factory learning. 3: Engineers available to service machinery overseas.

Kindly reminder:

Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.

1. Product details

2. Bag width,bag length

3. Bag shape

4. Packing film material

5. Machine frame
